The Pati de les Dones
A large open-air venue

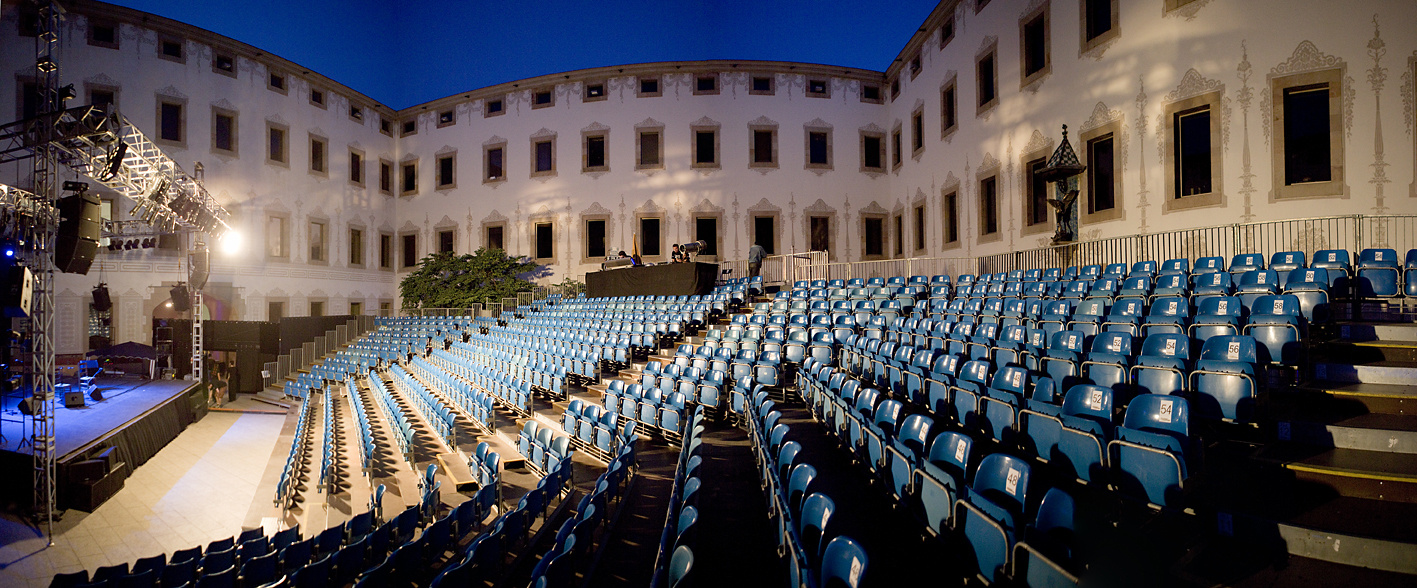

The Pati de les Dones occupies the central zone of the CCCB and is its natural focal point for users. It is a large, open-air space, ideal for festivals, concerts and major presentations, in which the historical buildings enter into dialogue with the modern glass façade that closes the courtyard along its northern side. You can contemplate the city and the sea, reflected in the upper part of the glass, a mirror of today’s Barcelona.
Location: ground floor
Surface area: 975 m2
Capacity: 360 people
Rates
| 1 day | 1/2 day |
|---|---|
| €3,780 + VAT | €2,500 + VAT |
| €2,080 + VAT* | €1,375 + VAT* |
| * Non-profit organisations |
Plans
Floor plan
(PDF | 141 KB)
Floor plan
(DWG | 276 KB)
Equipment
Video
- 16:9 LED screen, 5 m wide and >5000 lumens.
- Roland V-60HD video switcher.
- 6 x BNC SDI VK7 connector with control on stage.
- Novastar VX6S screen control system.
Sound
- Sound system comprising 2 x Fohhn PT-70 per side with 2 Fohhn DI 2.2000 amplifiers with AES/EBU digital connection.
- Front fill 4 x Fohhn XT-1 with Fohhn DI 4.100 amplifier with AES/EBU digital connection.
- 2 x Fohhn PS-850 subwoofers with Fohhn DI 2.400, AES/EBU digital.
- 4 x Fohhn XT-33 stage monitors with Fohhn DI 4.1000 power amplifier, analogue patch connection.
- Behringer X32 sound console.
- Digital connection by ethernet between control and stage with Behringer S32 patch connection.
- 2 x Cat6 ethernet points: one Behringer sound patch and the other stage control.
